Sinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHD

Product Categories
SINO VEHICLE & EQUIPMENT COMPANY LTD
Contact Now

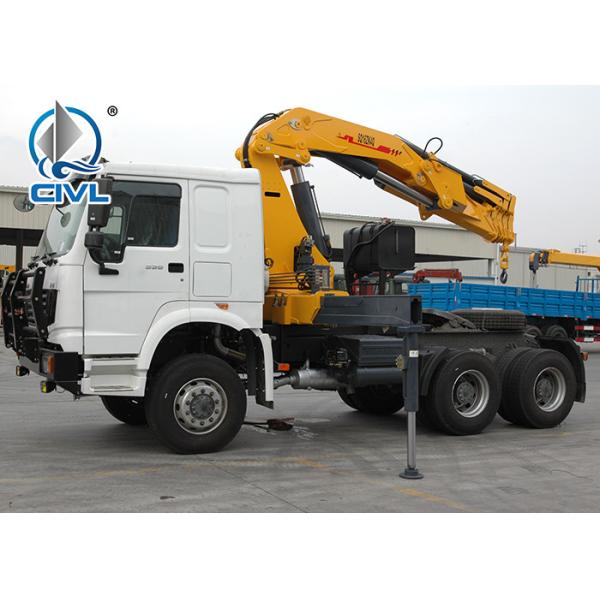

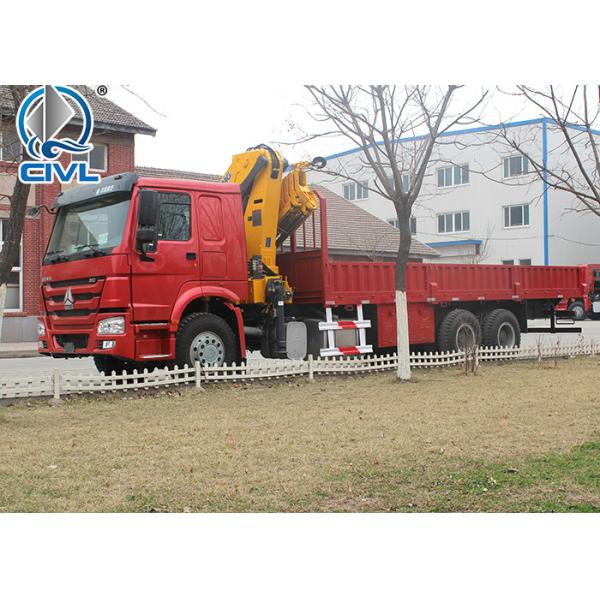

Sinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHD

Brand Name : Sinotruck

Model Number : xcmg

Certification : iso ccc

Place of Origin : china

MOQ : 1unitt

Payment Terms : L/C, T/T

Supply Ability : 10000units.month

Delivery Time : 20days

Packaging Details : nude

material : q345

color : option

engine : SInotruk

warranty : 1year

Contact Now

16T Truck mounted crane /truck with crane/pickup truck

We supply differents truck mounted cranes with different lifting capacity. Good quality and competitive price!!

Specifications

Max Lfting capacity 16000KG
Power 43KW
Max Lfting Moment 43.2T.M
Capacity 260L
Self Weight of crane 6455KG
Swing Angle 360°
Technical parameter of crane(16T XCMG Knuckle arm)
Crane model SQ16ZK4Q Crane weight (KG) 5,000
Max. lifting weight(KG) 16,000 Max. working height (m) 13.52
Max oil plow of hydroulic systm(L/MIN) 63 Rated pressure of hydraulic system(mpa) 31.5
Oil tank capacity (L) 250 Installation space(mm) 1,500
Max. working radius (m) 11.52 Max lifting Moment(T.M) 40
Lifting capacity/working radius Lifting capacity(kg) working radius(m)
16000 2.5
9600 4.1
6600 5.9
4850 7.75
3500 9.6
2600 11.52
Rotation angle 360°, all rotation

Explaination:

Truck mounted crane also known as lorry mounted truck, truck with crane, crane lorry, crane mounted lorry, derrick lorry truck, crane truck.

Type:

There're telescoping boom truck mounted crane and knuckle boom truck mounted crane.

The crane can be adopted with different brand, such as XCMG crane, SANY Crane, Shimei Crane, Hiab Crane, etc. mini truck mounted crane, truck with crane, truck with loading crane

How to choose suitable crane truck:

Particular attention is given to the design and production of knuckle boom cranes with a lifting capacity of between 1 and 12 t/m, bearing in mind the growing market needs and the use of these machines. Fassi light-weight cranes, which are also available in a wide range of versions, starting from “micro” cranes, combine reduced weight, compactness and limited dimensions, but without foregoing all those factors typical of Fassi quality, both in the structure and in the details. These light-weight loader cranes mean that you can have Fassi quality even on light-weight trucks, even 3.5 TM (total mass) trucks that can be driven with a normal driving license.

Sinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHDSinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHD

Related products

Sinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHDSinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHDSinotruk xcmg 15T Truck Mounted Crane Lorry Crane Truck With Crane Pickup Truck RHD

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
